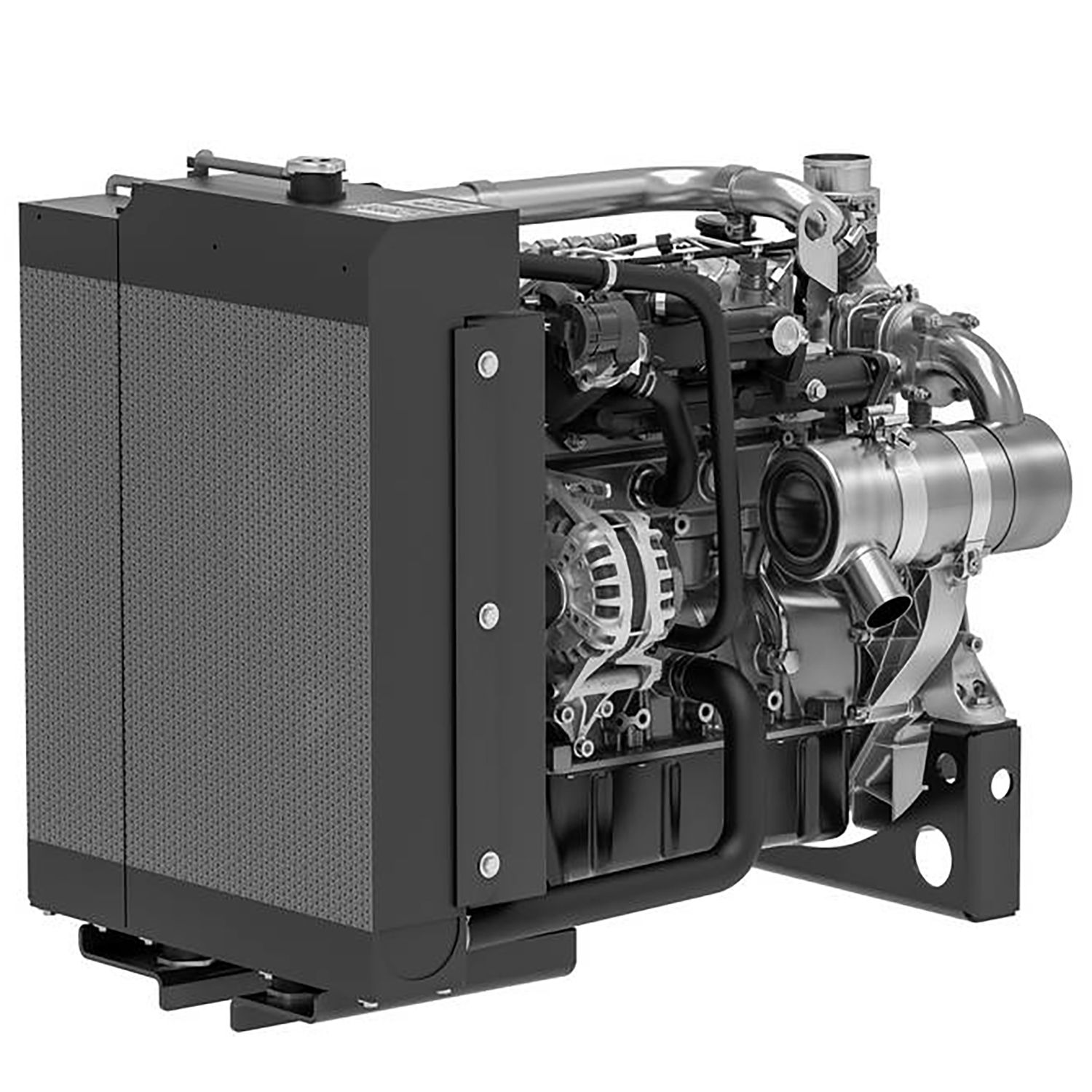

Hatz 3H50TIC OPU (Open Power Unit) 30-58HP

• 3H50TIC Hatz Diesel Engine
• Radiator
• Intercooler
• Suction Fan
• Starter, 12V
• Alternator, 12V
• Mounting Brackets
• SAE 5 Flywheel
• Air Cleaner Assy (not shown in pics)

Optional Accessories:

• Control Panels and Harnesses
• Air Cleaner Mounting Bracket
• Pusher Fan
• Rear Mount Air Cleaner Assy
• SAE 4 Flywheel
• Hydraulic Pump(s)
• Air Compressor
• Various Other Options…

This ready-to-install plug and play solution 3H50TIC OPU (Open Power Unit) includes all parts needed for the operation of the engine.   This includes radiator and intercooler, and the corresponding piping and wiring harness.  The parts are factory installed and tested.   The customer only needs to connect the fuel tank, prefilter and electric fuel pump, battery, and fill with fluids.

The system is ideally suited for applications such as hydraulic lifts, hydraulic power units, forestry machinery, drilling rigs, and stationary applications such as pumps and generators.  In addition, the OPU is immediately available from lot sizes of one piece to full container loads, an ideal solution for small as well as large OEMs.

• Maximum Power of 58HP @ 2,800 RPM
• Maximum Torque of 136 Ft.Lbs @ 1,600 – 2,000 RPM
• Bosch Common Rail System
• Exhaust Gas Turbocharger with Intercooler
• EPA Tier IV Final Certified (Stage V Available)
• 500 Hour Service Intervals
• Low Fuel Consumption
• Lowest Power to Weight Ratio in its Class
