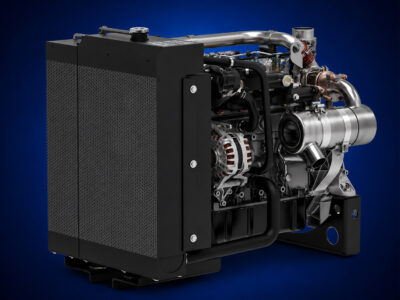

3H50TIC Open Power Unit

3H50TIC

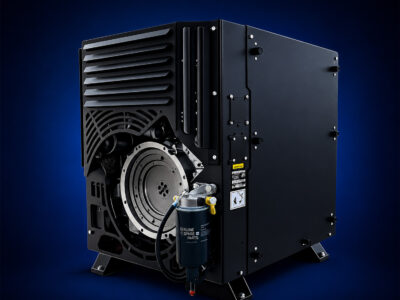

3H50TIC Enclosed Power Unit

3H50TIC

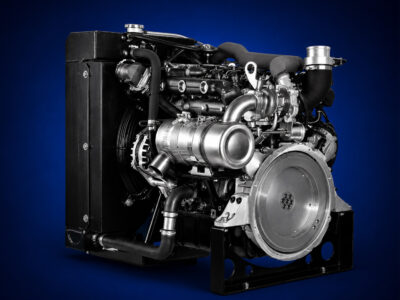

4H50TIC Open Power Unit

4H50TIC

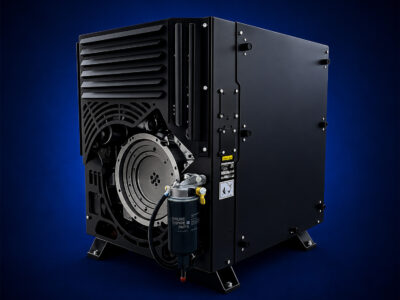

4H50TIC Enclosed Power Unit

4H50TIC
Power25-59 HP
Torque150 Lb-Ft
Speed1500-2800 RPM
TypeWater cooled 3-cylinder 4 stroke diesel engine
Exhaust CertificateEPA Tier 4 final certified
Dimensions31.7 x 27.0 x 31.8 In.
Injection SystemDirect injection with Bosch off-highway common-rail system
Datasheet3H50TIC Open Power Unit Datasheet
Request an Engine Quote
Power25-59 HP
Torque150 Lb-Ft
Speed1500-2800 RPM
TypeWater cooled 3-cylinder 4 stroke diesel engine
Exhaust CertificateEU Stage IIIB
Dimensions36.1 x 28.0 x 36.3 In.
Injection SystemDirect injection with Bosch off-highway common-rail system
Datasheet3H50TIC Enclosed Power Unit Datasheet
Request an Engine Quote
Power38.5-73.8 HP
Torque177 Lb-Ft
Speed1500-3000 RPM
TypeWater cooled 4-cylinder 4 stroke diesel engine
Exhaust CertificateEPA Tier 4 final certified
Dimensions35.2 x 27.0 x 31.8 In.
Injection SystemDirect injection with Bosch off-highway common-rail system
Datasheet4H50TIC Open Power Unit Datasheet
Request an Engine Quote
Power38.5-73.8 HP
Torque177 Lb-Ft
Speed1500-3000 RPM
TypeWater cooled 4-cylinder 4 stroke diesel engine
Exhaust CertificateEU Stage V and EPA Tier 4 final certified
Dimensions39.7 x 28.0 x 36.3 In.
Injection SystemDirect injection with Bosch off-highway common-rail system
Datasheet4H50TIC Enclosed Power Unit Datasheet
Request an Engine Quote

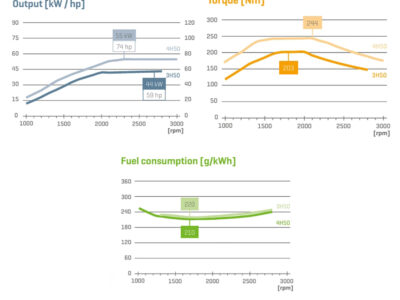

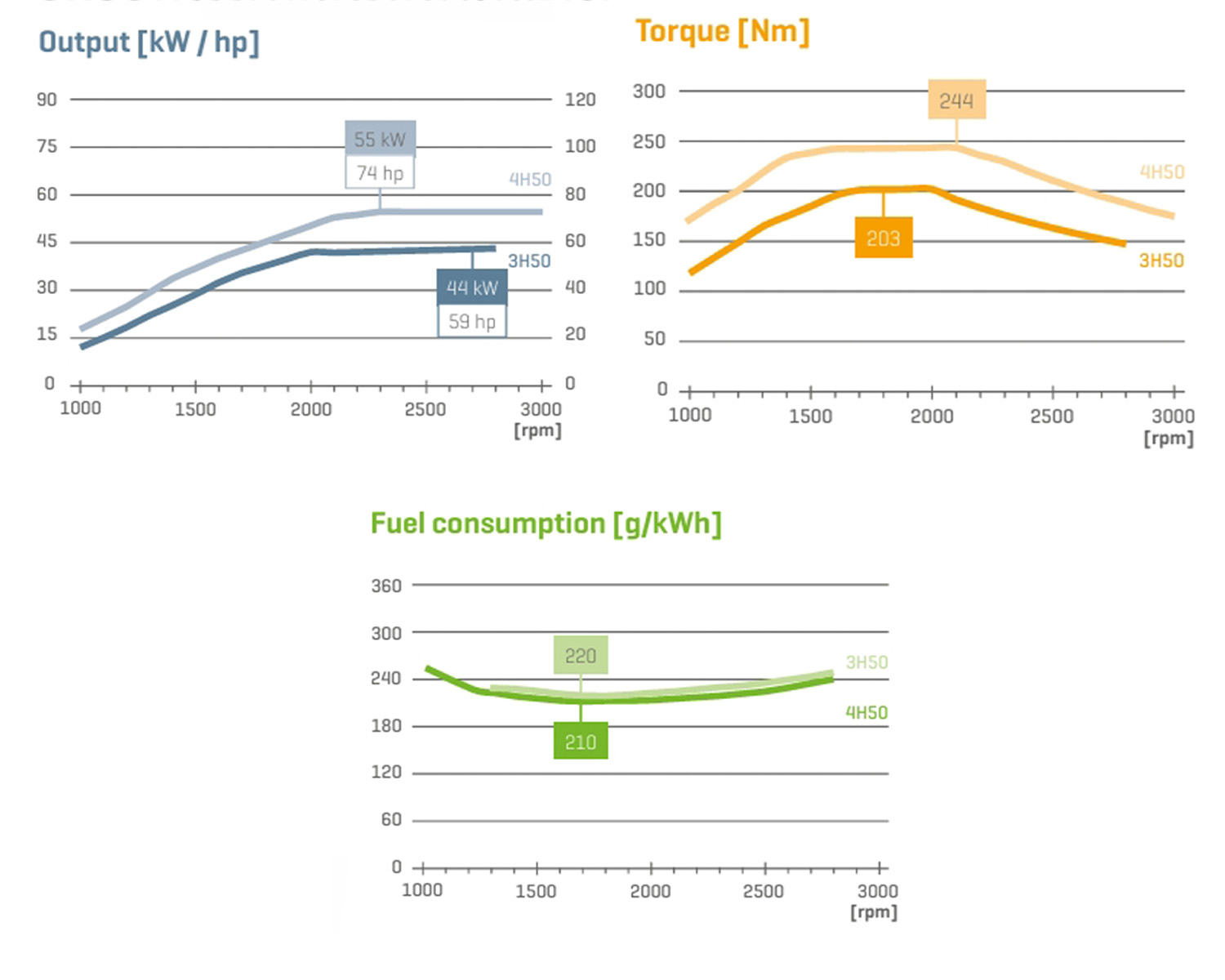

Power Output, Torque and Fuel Consumption

Chart
